TikTok: Logs, Logs, Logs

We are in 2020 and the US president is about to ban TikTok, a video-sharing social network mobile app, because “it poses a risk to US national security”. At the same time, Microsoft started discussions on a potential TikTok purchase in the United States. TikTok has received a lot of media coverage lately, but how much of it is factual? This is what I will try to answer in this series of articles. Each article will answer a very specific question. It is time to put the facts back on the table.

Disclaimer

• TikTok offers plethora of features to their users thanks to its million of lines long code. As such, a single article can not cover a question as broad and vague as “does TikTok poses a threat to US national security?”. That’s why I’ll cover the matter over several articles all focused on specific subjects.
• My name is Baptiste Robert, I’m a French security researcher. I’ve been analysing mobile apps for years. You can find my public work at fs0c131y.com/press and my stupid tweets at twitter.com/fs0c131y.
• My goal here is to be totally transparent. I will share everything you need to double check what I wrote in this article.
• If you’d like to skip the technical details, a TL;DR is available at the end of the article.

I) Introduction

On August 2, 2020, I started to analyse TikTok and tweeted about it.

Few minutes after this tweet, one of my followers commented.

We discussed by private messages and he explained me the issue. He listened to the network requests made by TikTok and noticed that a request was made every 2 minutes. However, the content was encrypted and he was unable to decrypt it.

Sounds like a good starting point for our journey:

• What does TikTok regularly send?
• When is it sent?
• Where is it sent?
• How the content is encrypted?

II) What does TikTok regularly send?

When debugging something, 90% of the work is being able to reproduce it. So, first I tried to reproduce the issue.

1. I downloaded the latest version of TikTok from the French PlayStore
2. I set up Burp Suite to intercept the network requests made by my phone
3. I used a Frida script to bypass the SSL pinning implemented in the app and started TikTok

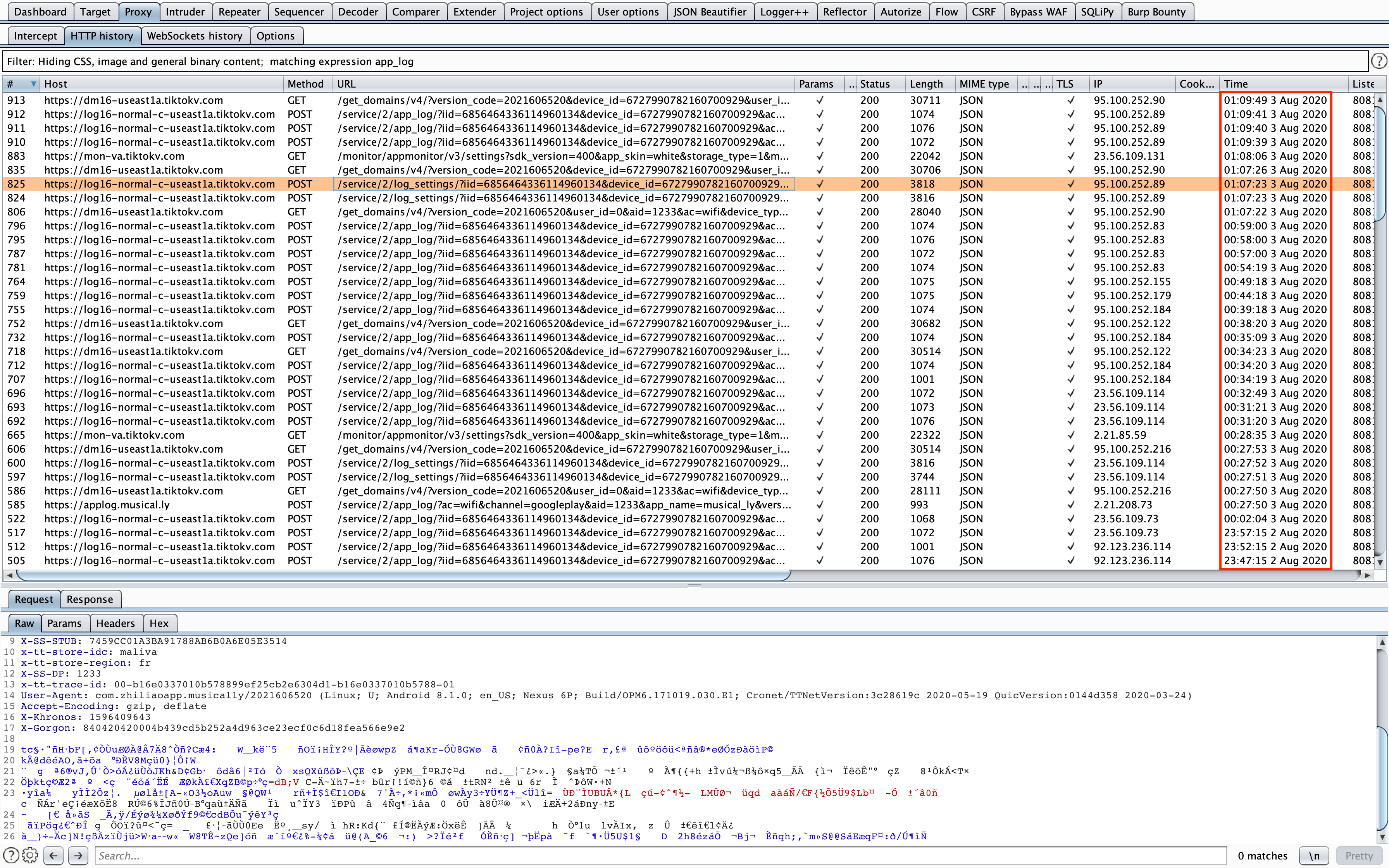

Bingo! Every 5 minutes, TikTok sent a network request with an encrypted content.

II.1) The /service/2/app_log/ endpoint

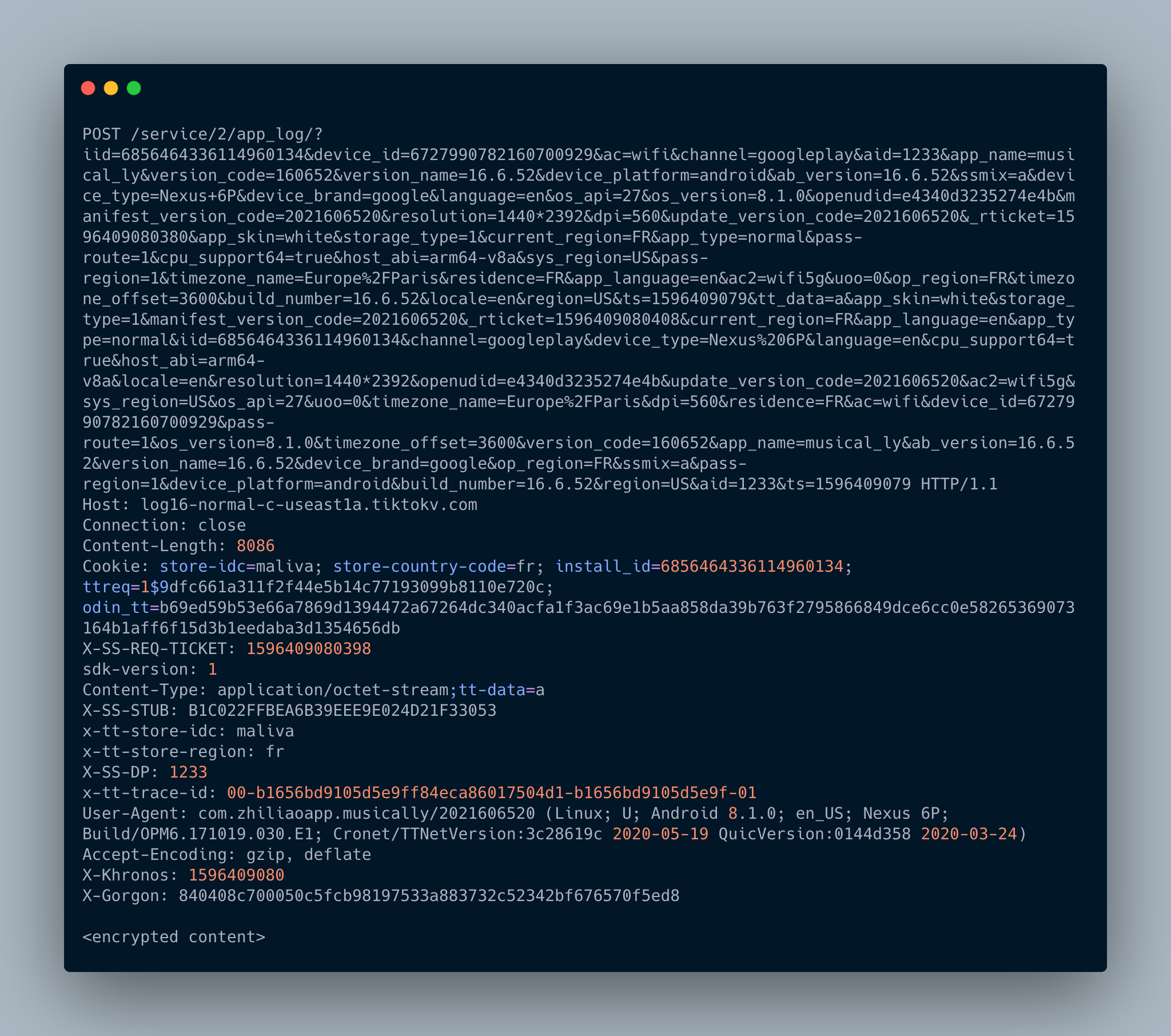

Let’s focus on the requests made to the endpoint /service/2/app_log/.

Parameters

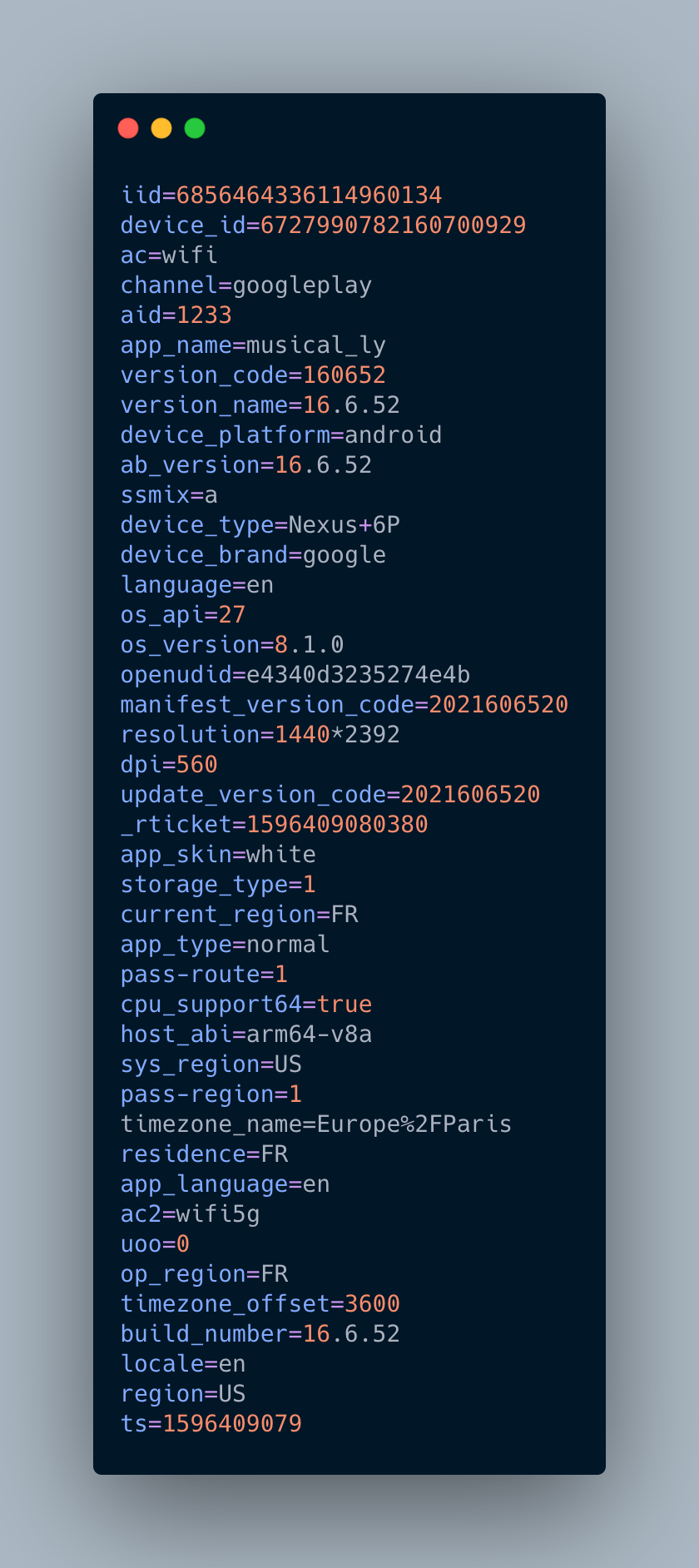

Before studying its encrypted content, we can already see that this request contains a huge amount of parameters.

Most of the names speak for themselves. I can see 3 types of parameters:

• Info about the device: device_id, device_type, device_brand, os_api, os_version, …
• Info about the app: app_type, app_language, version_code, version_name, build_number, …
• Info about the user: current_region, locale, region

While that might sound surprising to you, it really isn’t. Such practice is pretty standard and you can be assured that most apps you use have the same data-retrieval process.

Encrypted content

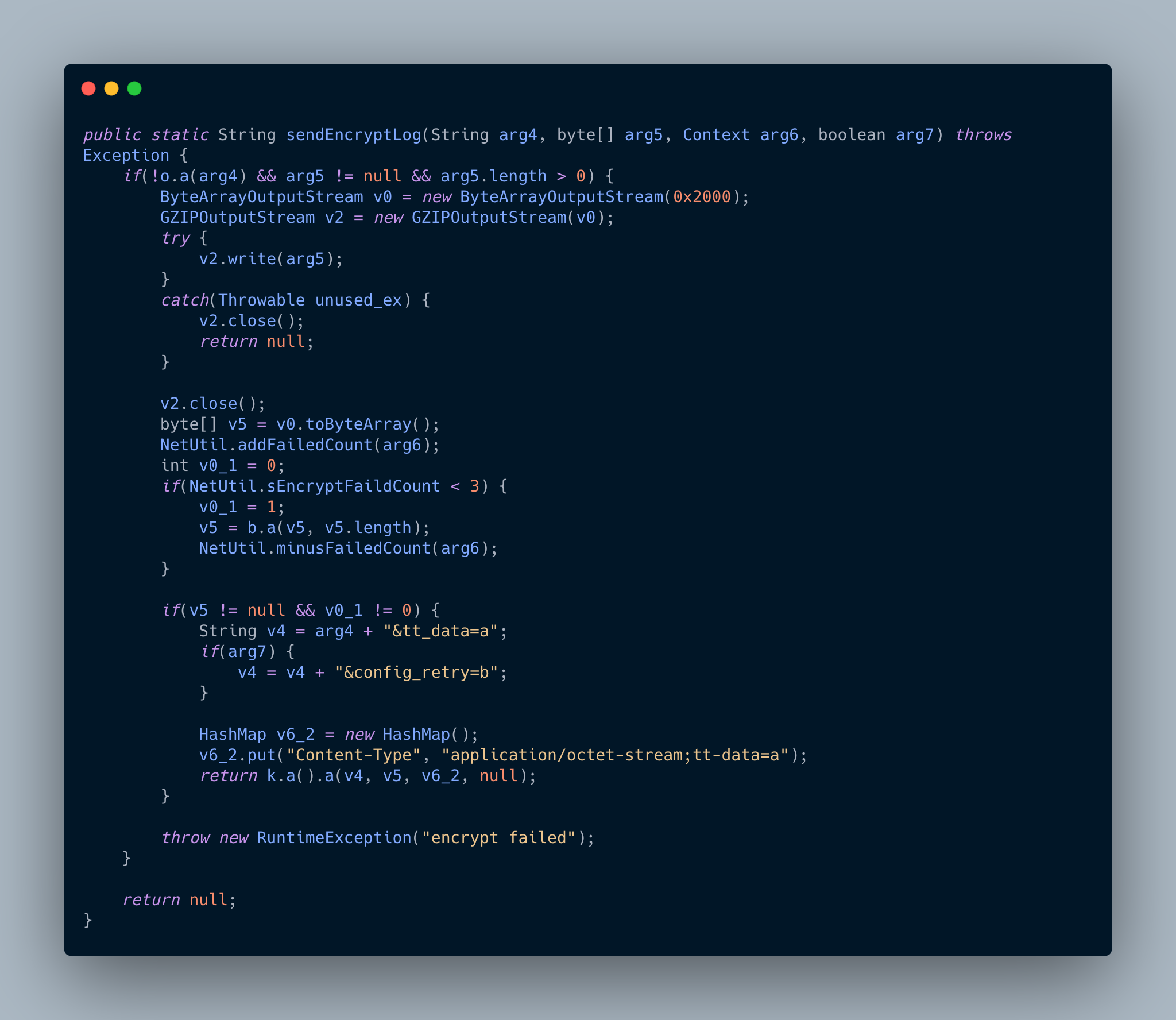

Time to look at the encrypted content! This is the fun part 😉. I decompiled the app and searched for “app_log”. I immediately found the method sendEncryptLog in the class com.ss.android.common.applog.NetUtil

You don’t read code? That’s ok, don’t worry. Look at the method signature. It took 4 parameters. arg4 is the url, arg5 is the content of the request (non encrypted) and the rest we don’t care for the moment.

Now, I can use Frida to intercept the call of this method and see the content of the request before encryption.

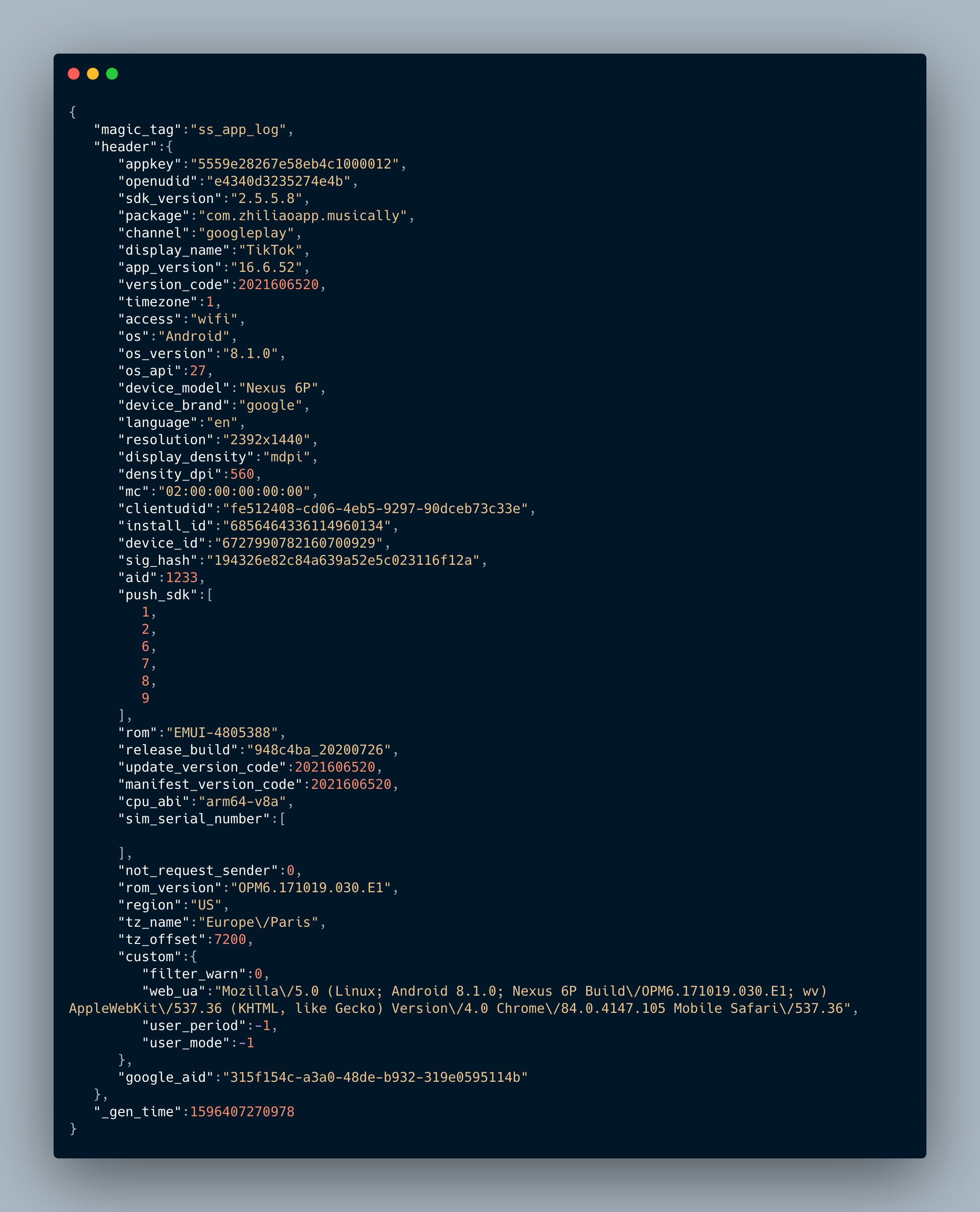

I used my small TTencryptedLog method and I got the following output

If we go through the content of the JSON file, we can see pretty standard data.

• Like before, a lot of info about the device
• When was the app last launched
• Events logging. I’d need to take a closer look at what they consider to be “events” but as far as I can tell, it seems to be a pretty standard analytics solution.

Also read: 12 brief explanation about the benefits of data protection for business success

III) When is it sent?

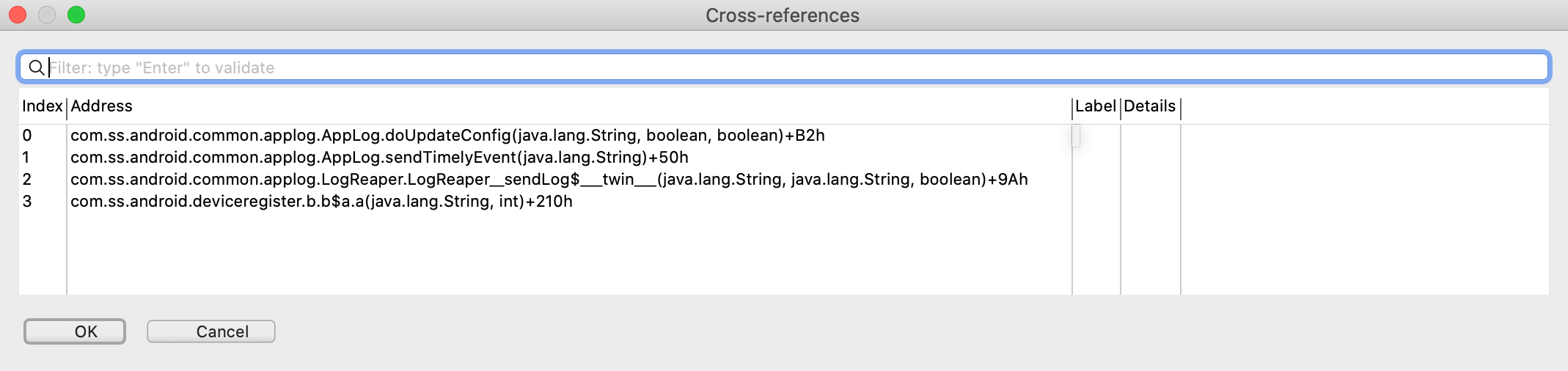

Answer to this question is equal to answer to when the method sendEncryptLog is called. By pressing the key X with JEB, you can easily get all the cross references.

We can see 4 methods:

• doUpdateConfig
• sendTimelyEvent
• sendLog
• a unknown method in the deviceRegister package

The sendEncryptLog method is used to send different type of JSON. So, I cleared the data of TikTok and I restarted everything from scratch. I managed to catch the following JSONs

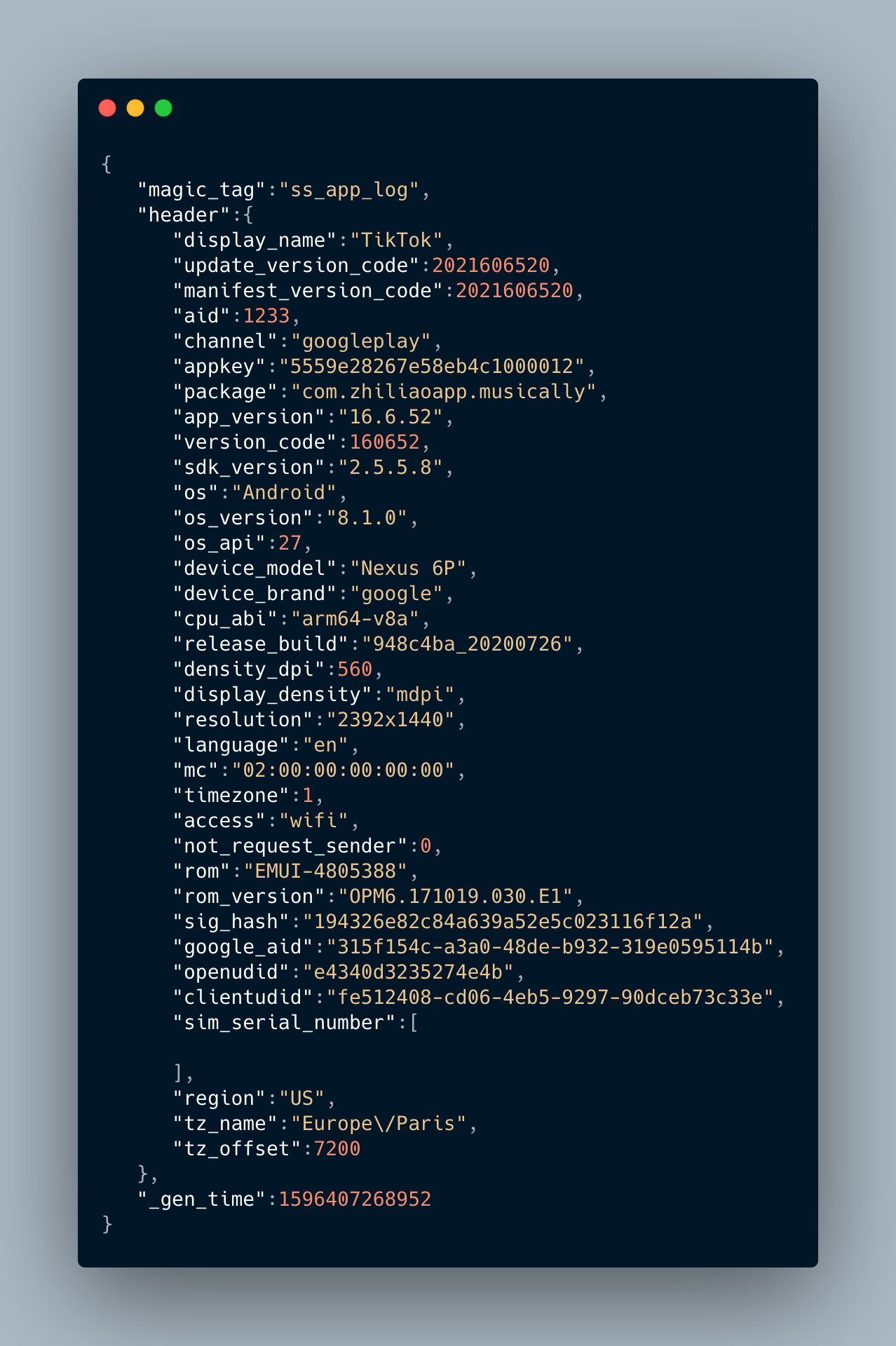

Content of the request when the device is register

Content of the request when the TikTok modify the log settings

Again, the field names speak for themselves. I cannot see anything suspicious or specific to TikTok in these JSONs.

IV) Where is it sent?

As you saw in the previous screenshots, the requests are sent to log16-normal-c-useast1a.tiktokv.com. Funny to see that I’m sitting in Europe and my logs are sent to a us-east enpoint… TikTok is an app used worldwide, they probably used several endpoint to upload the logs.

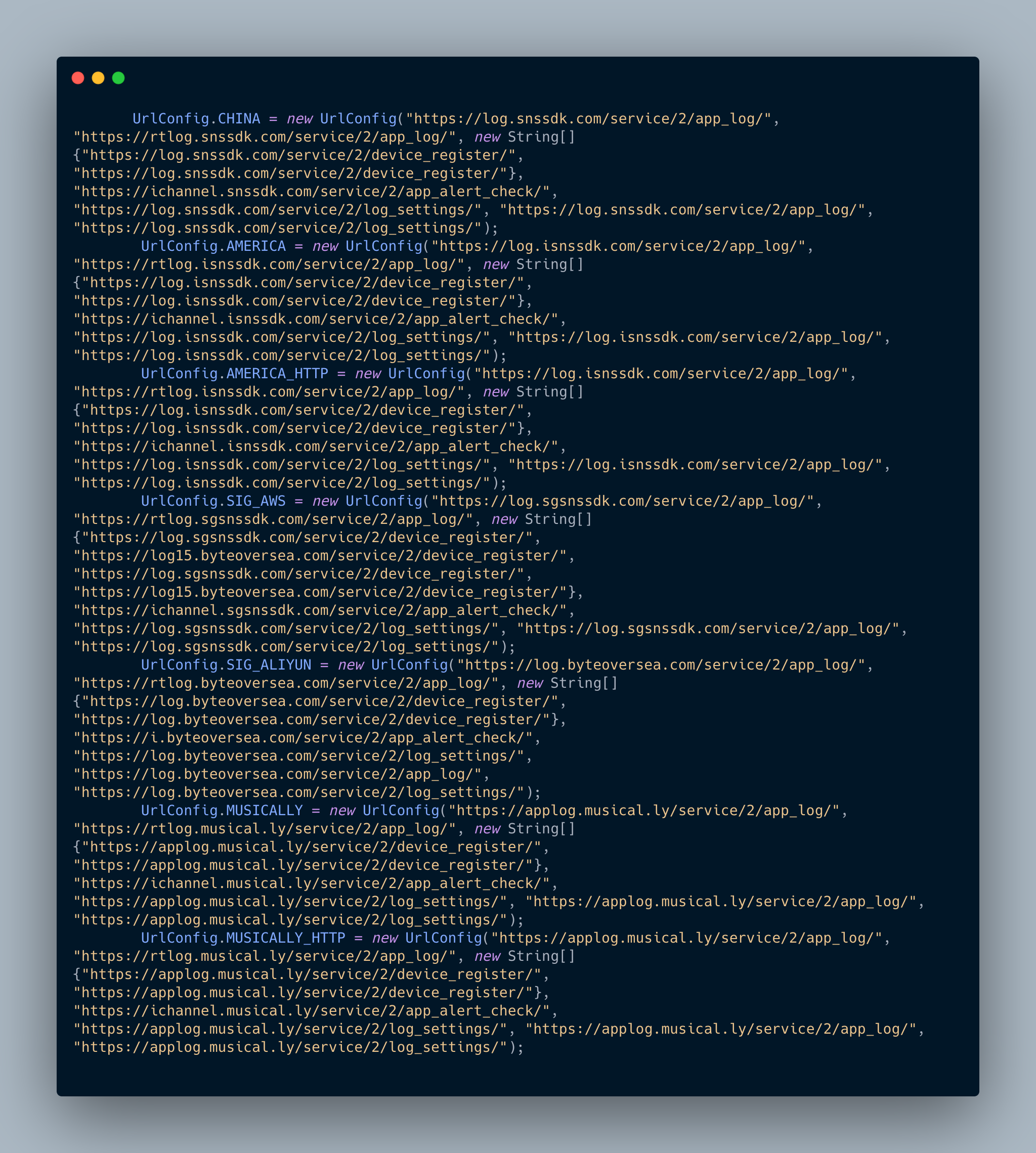

After digging in the code we can find the URLConfig class

There are 7 url configurations: China, America, America HTTP, SIG AWS, SIG ALIYUN (Alicloud Singapore), Musically, Musically HTTP.

Again, it seems weird to not have an European url configuration but ok.

V) How the content is encrypted?

Do you remember the sendEncryptLog method?

The encryption is happening at this line: v5 = b.a(v5, v5.length);

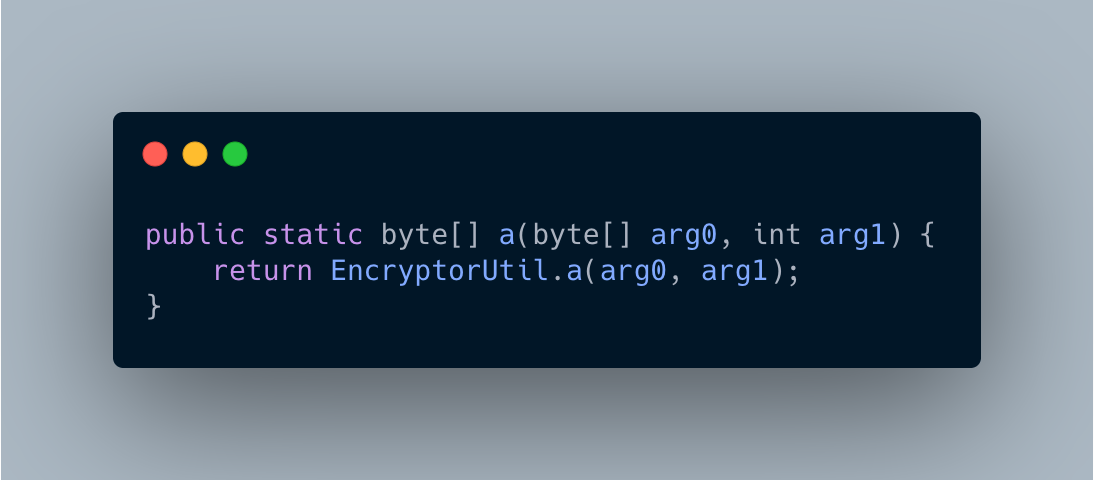

EncryptorUtil is where the fun is

Bingo! The encryption is done in a native library. All the native library used by TikTok are located in the folder /data/data/com.zhiliaoapp.musically/app_librarian/<version> in your phone. I’ll stop there for now. As for how TikTok is actually encrypting the data, that deserves its own article. And, well, it’s 12pm and I’m quite hungry.

TLDR

In this article, I tried to understand what data does TikTok regularly send back to its servers. I decrypted the content of the requests and analysed it. As far as we can see, in its current state, TikTok doesn’t have a suspicious behavior and is not exfiltrating unusual data. Getting data about the user device is quite common in the mobile world and we would obtain similar results with Facebook, Snapchat, Instagram and others.

I hope you enjoy this article. Others will follow. Don’t forget to follow me on Twitter and if you have questions don’t hesitate to sent me a message on Twitter or by email at [email protected]
